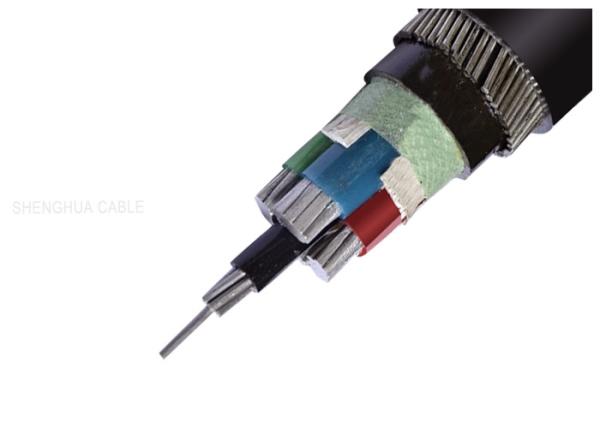

PVC Insulated&Sheathed Armoured Electrical Cable Aluminum Conductor Steel Wire Armored Cables 0.6/1kV

Shanghai Shenghua Cable (Group) Co., Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment

PVC Insulated&Sheathed Armoured Electrical Cable Aluminum Conductor Steel Wire Armored Cables 0.6/1kV

Brand Name : SHANCABLE

Model Number : VLV32 0.6/1kV

Certification : ISO,CE,IEC,TUV,KEMA

Place of Origin : Shanghai, China

MOQ : Negotiable

Price : Negotiable

Payment Terms : L/C, T/T

Supply Ability : 100KM/Week

Delivery Time : 10 Days

Packaging Details : Wooden Drum

Model name : PVC Armoured Cable

Rated Voltage : 0.6/1kV

Insulation : PVC

Conductor : Aluminum

Armour : Steel Wire Armoring

Sizes : 1.0 - 630 SQMM

Cores : Multi-Cores

Sheath : PVC

Standards : IEC / BS / IS / VDE

Warranty : 2 years

Contact Now

PVC Insulated&Sheathed Armoured Electrical Cable Aluminum Conductor Steel Wire Armored Cables 0.6/1kV

A power cable is an assembly of one or more electrical conductors, usually held together with an overall sheath. The assembly is used for transmission of electrical power. Power cables may be installed as permanent wiring within buildings, buried in the ground, run overhead, or exposed.

PVC Insulation Electric Cable

TYPE

Description of Cable

Main Applications

CU core AL core
VV VLV Copper/Aluminium core,PVC insulated,PVC sheathed power cable Non-armoured PVC cable are suited for laying indoors,In cable trench,On cable racks and in pipes. Unable bear external pressures and tensions.
VY VLY Copper/Aluminium core,PVC insulated,PE sheathed power cable
VV22 VLV22 Copper/Aluminium core,PVC insulated,steel tape armored,PVC sheathed power cable Steel-tape armoured PVC cables are suited for vertical burial.Can bear moderate positive pressures,Unable bear tension forces.
VV23 VLV23 Copper/Aluminium core,PVC insulated,steel tape armored,PE sheathed power cable
VV32 VLV32 Copper/Aluminium core,PVC insulated,thin steel wire armored,PVC sheathed power cable Thin steel wire armoured PVC cables are used in case of great difference of levels or vertical installation and Can do vertical burial.Can bear moderate positive pressures and tension forces.
VV33 VLV33 Copper/Aluminium core,PVC insulated,thin steel wire armored,PE sheathed power cable
VV42 VLV42 Copper/Aluminium core,PVC insulated,thick steel wire armored,PVC sheathed power cable Thick steel wire armoured PVC cables are suited for vertical installation and can be laid water or sea-bottom.Can bear greater positive pressures and tension forces.
VV43 VLV43 Copper/Aluminium core,PVC insulated,thick steel wire armored,PE sheathed power cable

Cable Structure

Conductor: Solid or stranded Aluminum
Insulation: Cross-linked polyethylene (XLPE) or Polyvinyl chloride (PVC)
Filler: Polypropylene filament with lapped binding tape
Binder: Binding tape
Inner sheath: Polyvinyl chloride (PVC)
Amour: Galvanized steel wire armored or steel tape armored
Sheath: Polyvinyl chloride (PVC)

Using Feature

(1.) The long-time working temperature of cable should not be highter than 70 oC

(2.) When core is in short-circuit(max 5s) the temperature should not exceed 160 oC

a.For single no-armored cable, it is not less than 20 times of outer diameter

b.For single-core armored cable, it is not less than 15 times of outer diameter

c.For multi-core no-armored cable, it is not less than 15 times of outer diameter

d.For multi-core armored cable, it is not less than 12 times of outer diameter

Standards

IEC60502, BS6346, VDE, AS/NZS, UL,etc or as customer's request.

The Rated Voltage(kV):

1st class 0.6/1 1.8/3 3.6/6 6/10 8.7/15 12/20 18/30 21/35
2nd class 1/1 3/3 6/6 8.7/10 12/15 18/20 - 26/35


Number of cores:

1, 2, 3, 3+1, 3+2, 3+3, 4, 4+1, 4+2, 5 and so on.

Note:

1. Only a part of cables are listed in the table. Cables with other specifications can be inquired.

2. Cables can be supplied with a range of single mode or multi mode.
3. Specially designed Cables structure is available on request.

PVC Insulated&Sheathed Armoured Electrical Cable Aluminum Conductor Steel Wire Armored Cables 0.6/1kV

PACKING AND SHIPPING

First, all cable For exporting are well packed and protected by wooden drum or Wood and Steel Drum.

The packing material is depended on the weight and size of cable.

The good information, manufacture information, and the client's information is firmly printed on each size of drum.

Second, after the well packed cable drums sent to Sea Port, they are loaded into 20 FT container or 40 FT container. All cable drum are firmly fixed by safety belt to make sure, no movement during the sea freight.

The size of the container is chosed according to weight of total loaded goods or as per the client's requirement.

Our Services

♦ We are the one of biggest manufacture of electric wire and power cable in southwest of China and has more than 20 years producing and marketing experience.

♦ We accept OEM. The cable size and material are customized.Ur own logo and

own design are welcome. We will produce according to your requirement and description;

♦ Please send us inquiry for more products info and we will give you feedback in 12 hours.
